CANtouch

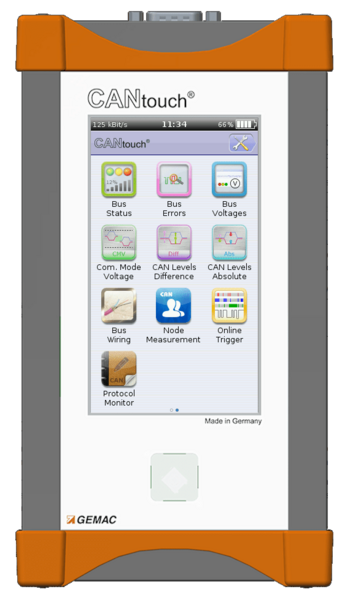

The CANtouch is a mobile measuring device for CAN-based bus systems. The further development of the CAN-Bus Tester 2 is battery-powered and equipped with a touch display. Its intuitive user interface allows extensive measurements to be taken in the shortest possible time. The results can be archived for documentation or later analysis and further processed on the PC. The physical layer measurements have been extended to include the direct determination of potential differences between the participants (common mode/ground shift). With the online trigger, you can monitor the bus for individual physical limits, determine problems over time and make errors visible in the oscillogram. The protocol monitor is used for sending, receiving, decoding, and recording messages. Device Philosophy The CANtouch is a battery-operated handheld diagnosis device for physical and logical CAN bus analysis. With its modern touch control, it allows intuitive and efficient handling without an additional computer. As further development of the CAN-Bus Tester 2, it has not only its functionality; it has new additional measurements as well. An easier valuation procedure with traffic light colors and smileys supports your work with a quick valuation of the measures. With the possibility for future updates, you are equipped for further enhancement. New functionality can be unlocked by purchasing additional licenses. In addition, we provide new software within the scope of product maintenance, which can be downloaded free of charge by every owner of a CANtouch. Many new functions are made available free of charge. The integrated battery supplies power to the device without a problem for a whole intense measurement day. It is monitored by a special charge controller that calculates the remaining time and residual charge. If all that is not enough – the device is charged up to 80% in only one hour regardless of whether you are measuring at that time or not. The rubberized aluminum continuous casting body is not only impressing high quality, but it is also extremely robust.
