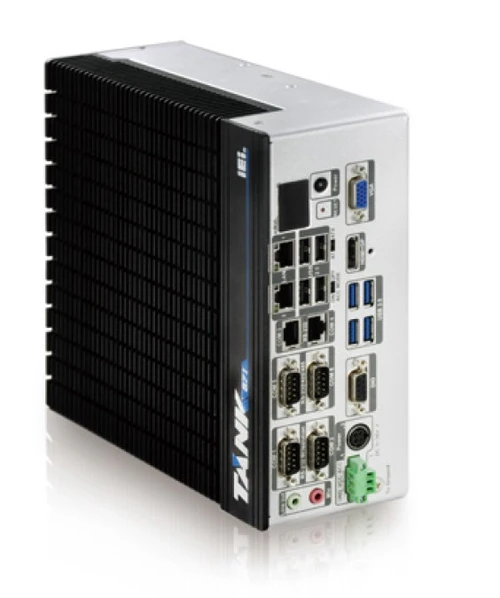

TANK-870-Q170 Fanless Embedded Computer. High-Performance 6th/7th Generation Intel® Core™ Processor
IEI
● 6th/7th Gen Intel® Core™ processor platform with Intel® Q170 chipset and DDR4 memory ● Triple independent display with high resolution support ● Rich high-speed I/O interfaces on one side for easy installation ● On-board internal power connector for providing power to add-on cards ● Great flexibility for hardware expansionUSB 3.1 Gen 1 (5Gb/s) 4 USB 2.0 4 Ethernet 2 x RJ-45 LAN1 (iRIS): Intel® I210 PCIe controller LAN2: Intel® I219LM PCIe controller COM Port 4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection) 2 x RS-232/422/485 (DB-9) Digital I/O 8 bit Digital I/O, 4 bit input / 4 bit output Display 1 x VGA, 1 x HDMI+DP, 1 x iDP (optional) Resolution 1 x VGA (Up to 1920 x 1200@60Hz) 1 x HDMI/DP (Up to 3840x2160@30Hz / 4096×2304@60Hz) Audio 1 x Line-out ; 1 x Mic-in Wireless 1 x 802.11a/b/g/n/ac (optional)
