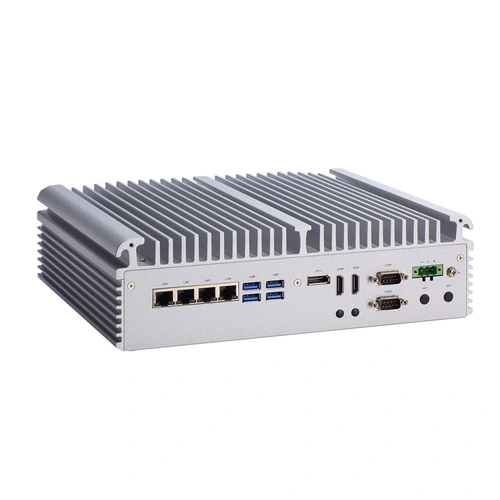

eBOX671A Fanless Embedded System

● LGA1200 10th gen Intel® Xeon®/Core™ i9/i7/i5/i3 or Celeron® with Intel® W480E chipset (Comet Lake-S) ● 4 GbE LAN with optional PoE supported ● Dual 2.5" SATA HDD drive bays with RAID 0 & 1 ● 2 HDMI and 1 DisplayPort for triple view ● -40 °C to 70 °C wide range operation temperature ● Wide range power input from 9 to 48 VDC ● Two 10GbE LAN (X550-T2) by request ● Flexible I/O Window supported via mPCIe modules

Manufacturer

Axiomtek

CPU performance

High

Expansion slots

PCIe; Yes

RAID

Yes

Storage

mSATA; SSD

Product sheet

ebox671a.pdf

Temperature range

-40°C ~ 65°C

Axiomtek


Axiomtek is a leading design and manufacturing company in the industrial computer and embedded field. Since their inception, Axiomtek has successfully gained worldwide recognition for our innovative designs and outstanding customer satisfaction.

Product lines include embedded board, system on module, single board computer, embedded system, industrial barebone, network appliance, touch panel computer, human machine interface, medical PC, industrial network, and digital signage. Their creative concept of integrated services for embedded computing assures trusted delivery and valuable system integration from board-level design-in to system-level design for vertical markets in automation, transportation, gaming, power utility, POS, kiosk, retail, network security, medical, digital signage, green power and much more.
