Aaeon

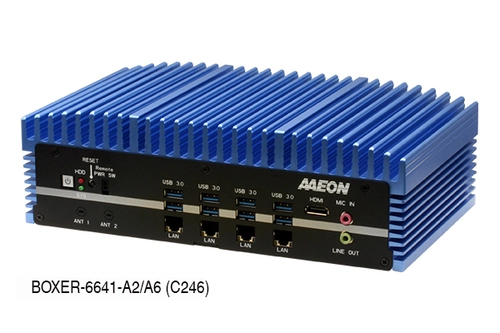

BOXER-6641 Fanless Embedded Box PC

■ Extreme Computing Power & Graphic Display Capability ■ Desktop Grade Socket Type Core™ - i3/i5/i7/i9 Processor for A1 & A5 model (max. TDP up to 65W) ■ Desktop Grade Socket Type Core™ - i3/i5/i7/i9/Xeon® Processor for A2 & A6 model (max. TDP up to 71W) ■ Supports DDR4 ECC or Non-ECC SODIMM, Up to 64GB ■ Supports Intel® GbE LAN x 4 (i211 x 3 + i219 x 1) ■ Supports Intel® AMT (A2 & A6 Model) ■ Supports HDMI x 2 Dual Display ■ Supports USB 3.2 Gen 1 x 8 (A2 & A6 model) ■ Supports BIOS Selectable RS-232/422/485 x 6 ■ Wide Range DC 10~35V Input

Manufacturer

Aaeon

CPU performance

High

Expansion slots

PCIe; Yes

RAID

Yes

Storage

SSD

Product sheet

BOXER-6641.pdf

Temperature range

-20°C ~ 55°C

Aaeon


AAEON, a Taiwanese company founded in 1992, is a global leader in industrial and embedded computing solutions.
They offer a wide product range, including industrial motherboards, ruggedized computers, embedded controllers,
and AI edge computing solutions. AAEON is renowned for its commitment to innovation and customized solutions
to meet specific industry needs. Their durable and cutting-edge technology is ideal for industrial automation,
healthcare, and transportation.

Read more: AAEON
