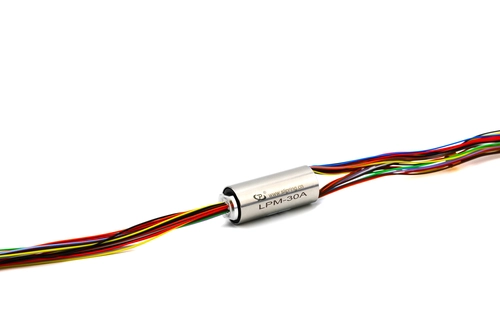

LPM-30A Miniature sliprings

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument. The LPM-30A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. The LPM-30A allows tremendous flexibility in dealing with system size restrictions. It is available in up to 30 circuit configurations.

Manufacturer

Jinpat

Circuits

30

IP code rating

IP54

Material

Plastic

Max operating speed

300 rpm

Fieldbus/Interface

Signal; Current

Product sheet

Jinpat


Founded in 1996 Jinpat Electronics is an experienced leader among slip ring companies worldwide.
The slip ring and rotary joint specialist with the broadest range. Manufacturing various industrial slip rings for industrial machinery, surveillance and radar systems, automation, artificial intelligence, aircraft, medical devices, marine equipment, defence, e t c.
With over two decades of research and production experiences, Jinpat collaborated and established strong relationships with multinational companies, research institutions, military departments, prestigious universities, e t c.
In addition, Jinpat provide both standard products and customizations. All products are secured by the quality management system certified by ISO9001:2008.
