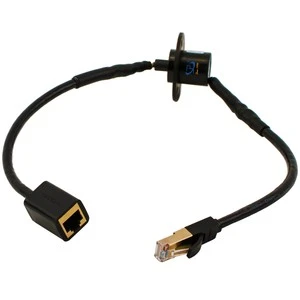

LPC-18A-0902-E3 Ethernet slip ring

Medium-sized capsule slip ring LPC-18A-0902-E3, used in the automotive industry rotary booth. The Ø22 mm slip ring can transmit 9 channels 2A and 1 channel Gigabit Ethernet. The LPC series is rated at 2A per channel or higher, and E3 is Gigabit Ethernet, which is a type of LAN. At the working temperature of -20 °C to +60 °C, and 0 to 300 revolutions per minute, the selection of the outer structure of the slip ring and the internal structural materials should first consider the strength, heat resistance and wear resistance of the material. The cap/end cap/tail sleeve is made of aluminum alloy. The internal bearing adopts the international standard bearing steel bearing to ensure the working temperature.

Manufacturer

Jinpat

Circuits

10

IP code rating

IP54

Material

Plastic

Max operating speed

300 rpm

Fieldbus/Interface

Signal; Ethernet; Current

Product sheet

LPC-18A-0902-E3 Data.JPG

Jinpat


Founded in 1996 Jinpat Electronics is an experienced leader among slip ring companies worldwide.
The slip ring and rotary joint specialist with the broadest range. Manufacturing various industrial slip rings for industrial machinery, surveillance and radar systems, automation, artificial intelligence, aircraft, medical devices, marine equipment, defence, e t c.
With over two decades of research and production experiences, Jinpat collaborated and established strong relationships with multinational companies, research institutions, military departments, prestigious universities, e t c.
In addition, Jinpat provide both standard products and customizations. All products are secured by the quality management system certified by ISO9001:2008.
