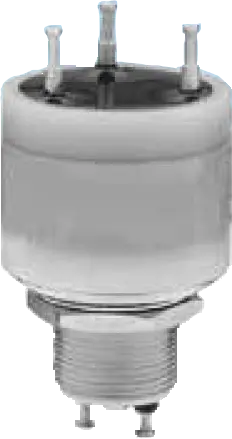

GH4 High Voltage Relay Change over (CO) 8kV

The moveable contact transfers continuity from one stationary contact to the other when the coil is energized or de-energized. Voltage isolation is then between opposing stationary contact and the moveable contact. As with our other High Voltage Relays GIGAVAC offers several design styles of vacuum and gas filled High Voltage Relays. Vacuum or gas as a dielectric each offer unique advantages depending on the application. GH4 Tungsten contacts improve power performance. Meets or exceeds standards set in MIL-R-83725. Mounting options in any axis.

Manufacturer

Gigavac

Coil Voltage

12VDC; 26,5VDC; 115VDC

Contact function

Change over (CO)

Contacts

SPDT

Max current

15A

Max system voltage

8kV

Mechanical cycles

2.000.000

Product sheet

Contact Function

Change over (CO)
