Rosho Automotive Solutions

RS 73-21

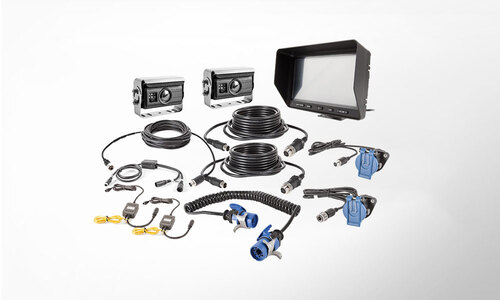

The 7″-inch TFT-LCD monitor LCM 703T is a display for showing the images from up to three cameras or video sources, which can be displayed or advanced either automatically or manually in single image. The monitor’s robust, very flat and elegant design housing fits seamlessly into the existing vehicle and is therefore ideal for versatile use in vehicles. The set enables the driver to have an overall view of the areas behind, in front of and to the side of the vehicle. This also covers the “blind spot” of the vehicle. To ensure the quality of our products, the RS 73-21 camera monitor system also undergoes a comprehensive and rigorous quality assurance process with very accurate routine testing at every key manufacturing step. MONITOR LCM 703T Protection class: IP 64 Camera connections: 3 7″ color TFT LCD Resolution (WxH) 800 x 480 Videosignal PAL / NTSC contrast 450:1 Camera / video inputs 3x Operating temperature range -20°C ~ +75 °C Power supply 12/24 VDC Dimensions 186mm x 130mm x 25mm (without holder) Weight 480g Camera RK 1100M Viewpoint: 145° Protection class: IP 69K Connection cable: MiniDIN 1/3“ CCD Video format PAL Viewing angle 145°(D) 650 TV lines 0 Lux with IR LED on IP69K Operating temperature range -40°C ~ 80 °C Power supply 12 VDC ±10% Dimensions 65mm x 88,5mm x 53mm Cable length 1m incl. Shutterbox and 20m camera cable Certificates E-mark ECE 118

Manufacturer

Rosho Automotive Solutions

Product sheet

ROSHO_Catalogue_Web.pdf

Temperature range

-20°C ~ 70°C

Supply voltage

12V

Rosho Automotive Solutions


The roots of today’s ROSHO GmbH Rose & Holiet go back to the 1970s: everything began with entertainment systems – initially not on four wheels, but for the retail and catering sectors The company entered the world of commercial vehicles in the 1980s with the development of audio-visual products for coaches, which quickly established themselves as sought-after alternatives to the market-leading products of the time. As pioneers, Rose & Holiet developed the first camera surveillance systems for vehicles.

Today, ROSHO Automotive Solutions has specialized in system solutions and products for trucks, public transport and commercial vehicles – for a good two decades as a contemporary and flexible company. We are optimally equipped for the future of mobility:

We have been using digital, networked and intelligent technologies for many years and are already working on the next step for more safety on the road – with innovative hardware and software that we refine into highly reliable complete systems
