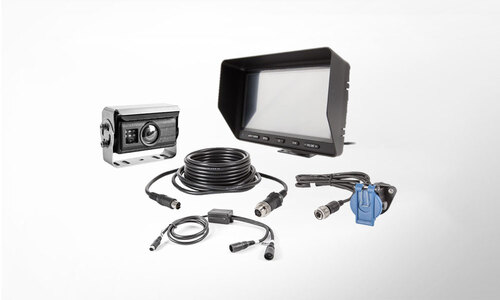

RS 73-20

The 7″-inch TFT-LCD monitor LCM 703T is a display for showing the images from up to three cameras or video sources, which can be displayed or advanced either automatically or manually in single image. The monitor’s robust, very flat and elegant design housing fits seamlessly into the existing vehicle and is therefore ideal for versatile use in vehicles. The set enables the driver to have an overall view of the areas behind, in front of and to the side of the vehicle. This also covers the “blind spot” of the vehicle. To ensure the quality of our products, the RS 73-20 camera monitor system also goes through a comprehensive and strict quality assurance process with very accurate routine testing at every major manufacturing step. MONITOR LCM 703T Protection class: IP 64 Camera connections: 3 7″ color TFT LCD Resolution (WxH) 800 x 480 Videosignal PAL / NTSC contrast 450:1 Camera / video inputs 3x Operating temperature range -20°C ~ +75 °C Power supply 12/24 VDC Dimensions 186mm x 130mm x 25mm (without holder) Weight 480g Camera RK 1100M Viewpoint: 145° Protection class: IP 69K Connection cable: MiniDIN 1/3“ CCD Video format PAL Viewing angle 145°(D) 650 TV lines 0 Lux with IR LED on IP69K Operating temperature range -40°C ~ 80 °C Power supply 12 VDC ±10% Dimensions 65mm x 88,5mm x 53mm Cable length 1m incl. Shutterbox and 20m camera cable Certificates E-mark ECE 118
