Rosho Automotive Solutions

RS 73-14 & RS 73-15

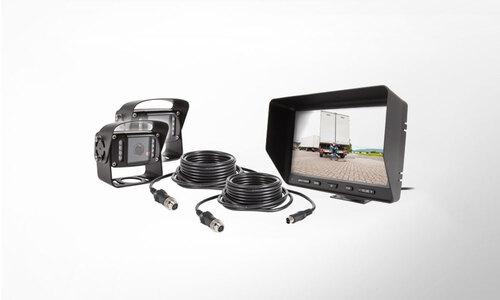

The monitor-camera system RS 73-14 consists of a 7″ monitor LCM 703T, cameras RK1405M and camera cable. The rugged IP69k enclosure is ideal for outdoor use in trucks, agar and motor vehicles. The 7″-inch TFT-LCD monitor LCM 703T is a display for showing the images from up to three cameras or video sources, which can be displayed or advanced either automatically or manually in single image. Due to the robust design, the camera meets the very high IP69k protection class for water and dust tightness and also withstands cleaning with a high-pressure cleaner and is therefore ideal for use in trucks, agricultural or construction vehicles… The set enables the driver to have a total view of the areas behind, in front of and to the side of the vehicle. This also covers the “blind spot” of the vehicle. To ensure the quality of our products, the RS 73-14 camera monitor system also undergoes a comprehensive and rigorous quality assurance process with very accurate routine testing at every key manufacturing step. MONITOR LCM 703T Protection class: IP 64 Camera connections: 3 7″ color TFT LCD Resolution (WxH) 800 x 480 Videosignal PAL / NTSC contrast 450:1 Camera / video inputs 3x Operating temperature range -20°C ~ +75 °C Power supply 12/24 VDC Dimensions 186mm x 130mm x 25mm (without holder) Weight 480g Camera RK 14XX series Viewpoint: 78° / 130° / 150° Protection class: IP 69K Connection cable: MiniDIN 1/3″ CCD video format PAL 700 TV lines 0,01 Lux (0 Lux with IR LED on) IP69K Heating Operating temperature range -30°C ~ 70 °C Power supply 12/24 VDC Dimensions 76mm x 64mm x 42mm (without sun visor) Certificates E-mark ECE 118 ES-95400-10 (analog DIN EN ISO 9227) IEC 60068-1:2013 / DIN EN 60068-1 VDE 0468-1:2015-09 IEC 60068-2-11:1981 DIN EN 60068-2-11:2000-02 MBN LV 124-2:2013-08

Manufacturer

Rosho Automotive Solutions

Product sheet

ROSHO_Catalogue_Web.pdf

Temperature range

-20°C ~ 70°C

Supply voltage

12V; 24V

Rosho Automotive Solutions


The roots of today’s ROSHO GmbH Rose & Holiet go back to the 1970s: everything began with entertainment systems – initially not on four wheels, but for the retail and catering sectors The company entered the world of commercial vehicles in the 1980s with the development of audio-visual products for coaches, which quickly established themselves as sought-after alternatives to the market-leading products of the time. As pioneers, Rose & Holiet developed the first camera surveillance systems for vehicles.

Today, ROSHO Automotive Solutions has specialized in system solutions and products for trucks, public transport and commercial vehicles – for a good two decades as a contemporary and flexible company. We are optimally equipped for the future of mobility:

We have been using digital, networked and intelligent technologies for many years and are already working on the next step for more safety on the road – with innovative hardware and software that we refine into highly reliable complete systems
