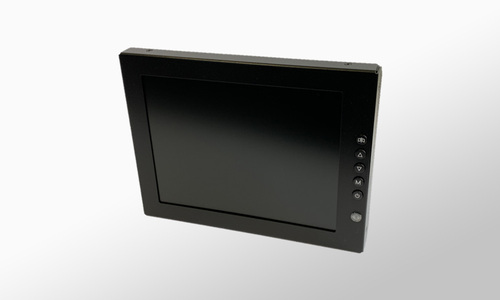

Monitor LCM 806OEM

The automotive grade (E1 certified) 8″-inch TFT-LCD monitor LCM 806OEM is a display for displaying the images from two video sources with external switching of inputs and is mainly used in vehicles for displaying the images from two surveillance cameras. The monitor can be operated to set the image properties (such as brightness, contrast, etc.) and the operating modes (e.g. mirroring, automatic switch-on, etc.) via the control panel on the right side of the monitor. In both cases, the settings made in each case are displayed to the operator via graphical or text displays on the monitor. If desired, the keys can be protected against unintentional operation by deactivation. The simple and elegant design of the monitor fits seamlessly into the existing design and is therefore ideal for use in buses, trains and other means of public transport. Operation is also possible at temperatures from -20 to +80 °C. To ensure the quality of our products, the LCM 806OEM monitor also undergoes a comprehensive and stringent quality assurance process with very precise unit testing at every key manufacturing step. MONITOR LCM 806OEM 8″ color TFT LCD Resolution (WxH) 800 x 600 Videosignal PAL / NTSC contrast 500:1 Camera / video inputs 2x (via trigger signal) Operating temperature range -20°C ~ +80 °C Power supply 12/24 VDC Dimensions 204mm x 156mm x 24mm (without holder) weight approx. 0,85kg Certificates E-mark ECE 118

Manufacturer

Rosho Automotive Solutions

Product sheet

Temperature range

-20°C ~ 70°C

Supply voltage

12V; 24V
