Rosho Automotive Solutions

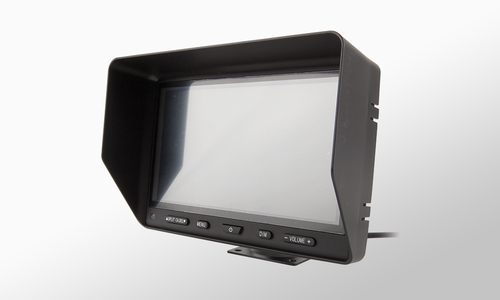

Monitor LCM 703T

The 7″ TFT-LCD monitor LCM 703T is a display for showing the images from up to three cameras or video sources, which can be displayed or switched on either automatically or manually in a single image. The monitor’s robust, very flat and elegant design case fits seamlessly into the existing vehicle and is therefore ideal for use in trucks, buses, agricultural or construction vehicles. The monitor features a key lock to protect device settings from unauthorized changes. Operation is also possible at temperatures from -20 to +75 °C. Operation is also possible at temperatures from -20 to +75 °C. To ensure the quality of our products, the LCM 703T monitor also undergoes a comprehensive and stringent quality assurance process with very accurate routine testing at every key stage of production. MONITOR LCM 703T Protection class: IP 64 Camera connections: 3 7″ color TFT LCD Resolution (WxH) 800 x 480 Videosignal PAL / NTSC contrast 450:1 Camera / video inputs 3x Operating temperature range -20°C ~ +75 °C Power supply 12/24 VDC Dimensions 186mm x 130mm x 25mm (without holder) Weight 480g Certificates E-mark ECE 118

Manufacturer

Rosho Automotive Solutions

Product sheet

Temperature range

-20°C ~ 70°C

Supply voltage

12V; 24V

Rosho Automotive Solutions


The roots of today’s ROSHO GmbH Rose & Holiet go back to the 1970s: everything began with entertainment systems – initially not on four wheels, but for the retail and catering sectors The company entered the world of commercial vehicles in the 1980s with the development of audio-visual products for coaches, which quickly established themselves as sought-after alternatives to the market-leading products of the time. As pioneers, Rose & Holiet developed the first camera surveillance systems for vehicles.

Today, ROSHO Automotive Solutions has specialized in system solutions and products for trucks, public transport and commercial vehicles – for a good two decades as a contemporary and flexible company. We are optimally equipped for the future of mobility:

We have been using digital, networked and intelligent technologies for many years and are already working on the next step for more safety on the road – with innovative hardware and software that we refine into highly reliable complete systems
