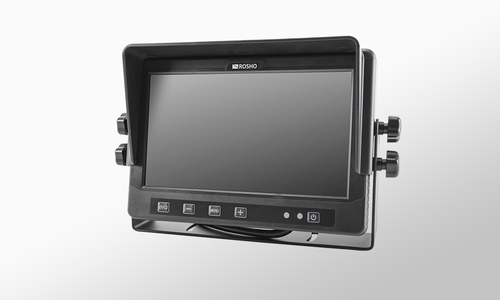

Monitor LCM 702HD

The 7″ TFT-LCD monitor LCM 702HD is a display for showing the images from up to two cameras or video sources. This robust monitor is suitable for many applications, fits seamlessly into the existing vehicle and is therefore ideal for use in buses, trucks, vans, but also agricultural and construction machinery. The monitor can also be operated at temperatures ranging from -30 to +80 °C. To ensure the quality of our products, the LCM 702HD monitor also undergoes a comprehensive and stringent quality assurance process with very accurate routine testing at every key stage of production. MONITOR LCM 702HD Protection class: IP 44 Camera connections: 2 (MiniDin 4pol) resolution: 800 x 400 pixel screen diagonal / dimension: 7″ / 178mm power consumption: 6W video standard: NTSC / PAL image brightness: 300 cd / m² Operating temperature: -30°C to +80°C Vibration resistance: 6G DC 12-32V operating voltage Weight: 460g (without holder) Component parts Bracket holder Sun visor Standard foot

Manufacturer

Rosho Automotive Solutions

Product sheet

Temperature range

-30°C ~ 75°C

Supply voltage

12-32VDC

Rosho Automotive Solutions


The roots of today’s ROSHO GmbH Rose & Holiet go back to the 1970s: everything began with entertainment systems – initially not on four wheels, but for the retail and catering sectors The company entered the world of commercial vehicles in the 1980s with the development of audio-visual products for coaches, which quickly established themselves as sought-after alternatives to the market-leading products of the time. As pioneers, Rose & Holiet developed the first camera surveillance systems for vehicles.

Today, ROSHO Automotive Solutions has specialized in system solutions and products for trucks, public transport and commercial vehicles – for a good two decades as a contemporary and flexible company. We are optimally equipped for the future of mobility:

We have been using digital, networked and intelligent technologies for many years and are already working on the next step for more safety on the road – with innovative hardware and software that we refine into highly reliable complete systems
