Rosho Automotive Solutions

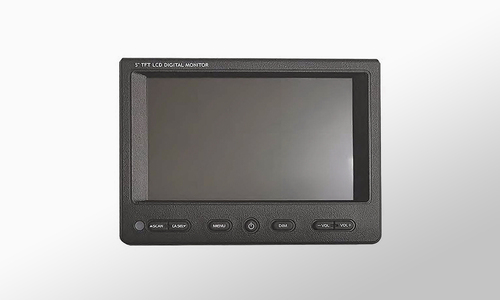

Monitor LCM 503T

The 5″ TFT-LCD monitor LCM 503T is a display for showing the images from up to three cameras or video sources, which can be displayed or switched on either automatically or manually in a single image. The monitor’s robust, very flat and elegant design housing fits seamlessly into the existing vehicle and is therefore ideal for use in trucks, buses, fork lift trucks, agricultural or construction vehicles. The monitor features a key lock that can be activated to protect the device settings against unauthorized changes. Operation is also possible at temperatures from -20 to +75 °C. The space-saving size of the monitor makes it versatile and suitable for use in most areas of the vehicle. To ensure the quality of our products, the LCM 503T monitor also undergoes a comprehensive and stringent quality assurance process with very accurate unit testing at every key manufacturing step. MONITOR LCM 503T Protection class: IP 68 Camera connections: 3 5″ color TFT LCD Resolution (WxH) 800 x 480 Videosignal PAL / NTSC contrast 450:1 Operating temperature range -20°C ~ +75 °C Power supply 12/24 VDC Dimensions 138mm x 98mm x 24mm (without holder) Weight 270g Certificates E-mark ECE 118 Vibration Shock

Manufacturer

Rosho Automotive Solutions

Product sheet

Temperature range

-20°C ~ 70°C

Supply voltage

12V; 24V

Rosho Automotive Solutions


The roots of today’s ROSHO GmbH Rose & Holiet go back to the 1970s: everything began with entertainment systems – initially not on four wheels, but for the retail and catering sectors The company entered the world of commercial vehicles in the 1980s with the development of audio-visual products for coaches, which quickly established themselves as sought-after alternatives to the market-leading products of the time. As pioneers, Rose & Holiet developed the first camera surveillance systems for vehicles.

Today, ROSHO Automotive Solutions has specialized in system solutions and products for trucks, public transport and commercial vehicles – for a good two decades as a contemporary and flexible company. We are optimally equipped for the future of mobility:

We have been using digital, networked and intelligent technologies for many years and are already working on the next step for more safety on the road – with innovative hardware and software that we refine into highly reliable complete systems
