Rosho Automotive Solutions

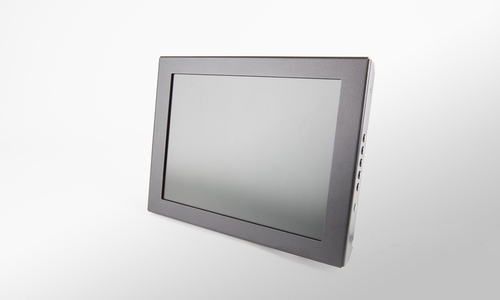

Monitor LCM 1006

The automotive grade (E1 certified) 10.4″ TFT-LCD monitor LCM 1006 is a display for displaying the images from two video sources with external switching of inputs and is mainly used in vehicles for displaying the images from two surveillance cameras. The monitor can be operated to set the image properties (such as brightness, contrast, etc.) and the operating modes (e.g. mirroring, automatic switch-on, etc.) via the control panel on the right side of the monitor. In both cases, the settings made in each case are displayed to the operator via graphical or text displays on the monitor. If desired, the keys can be protected against unintentional operation by deactivation. The simple and elegant design of the monitor fits seamlessly into the existing design and is therefore ideal for use in buses, trains and other means of public transport. Operation is also possible at temperatures from -20 to +80 °C. To ensure the quality of our products, the LCM 1006 monitor also undergoes a comprehensive and stringent quality assurance process with very accurate routine testing at every key stage of production. MONITOR LCM 1006 Protection class: IP44 Camera connections: 2 10.4” (26.4 cm) TFT-LCD surface mount monitor Flat design (case depth 2.9 cm) Resolution: 800 RGB (H) x 600 (V) pixels Illuminance 400 cd/m² OnScreen Display 2 x camera input (switchable) PAL / NTSC Image mirror function Programmable night setback Key lock Supply voltage 24V Certificates E-mark ECE 118

Manufacturer

Rosho Automotive Solutions

Product sheet

Supply voltage

24V; 12V

Rosho Automotive Solutions


The roots of today’s ROSHO GmbH Rose & Holiet go back to the 1970s: everything began with entertainment systems – initially not on four wheels, but for the retail and catering sectors The company entered the world of commercial vehicles in the 1980s with the development of audio-visual products for coaches, which quickly established themselves as sought-after alternatives to the market-leading products of the time. As pioneers, Rose & Holiet developed the first camera surveillance systems for vehicles.

Today, ROSHO Automotive Solutions has specialized in system solutions and products for trucks, public transport and commercial vehicles – for a good two decades as a contemporary and flexible company. We are optimally equipped for the future of mobility:

We have been using digital, networked and intelligent technologies for many years and are already working on the next step for more safety on the road – with innovative hardware and software that we refine into highly reliable complete systems
