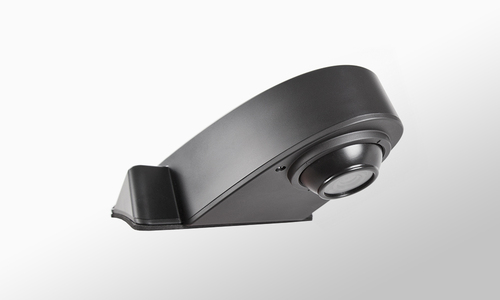

Camera RKT 1003M

The RKT 1003M camera with robust IP69k housing, 12 V and compact design for vans and minibuses. The modern and innovative camera was specially developed for use as a rear view camera, especially for outdoor use. It is resistant to dust, dirt, rain and frost. The camera is offered with the analog television standards PAL and NTSC. Operation is also possible at temperatures from -30 to +70 °C. To ensure the quality of our products, the RKT 1003M camera also undergoes a comprehensive and stringent quality assurance process with very accurate routine testing at every key stage of production. CAMERA RKT 1003M Angle of view: 110° (D) Protection class: IP 69K Connection cable: MiniDIN 1/4“ CCD Video format PAL/NTSC 600 TV lines 0 Lux with IR LED on IP69K Operating temperature range -30°C ~ 70 °C Power supply 12 VDC (±10%) Dimensions 133mm x 75mm x 204mm Weight 154g Certificates E-mark ECE 118

Manufacturer

Rosho Automotive Solutions

Product sheet

ROSHO_Catalogue_Web.pdf

Temperature range

-30°C ~ 65°C

Supply voltage

12V

Rosho Automotive Solutions


The roots of today’s ROSHO GmbH Rose & Holiet go back to the 1970s: everything began with entertainment systems – initially not on four wheels, but for the retail and catering sectors The company entered the world of commercial vehicles in the 1980s with the development of audio-visual products for coaches, which quickly established themselves as sought-after alternatives to the market-leading products of the time. As pioneers, Rose & Holiet developed the first camera surveillance systems for vehicles.

Today, ROSHO Automotive Solutions has specialized in system solutions and products for trucks, public transport and commercial vehicles – for a good two decades as a contemporary and flexible company. We are optimally equipped for the future of mobility:

We have been using digital, networked and intelligent technologies for many years and are already working on the next step for more safety on the road – with innovative hardware and software that we refine into highly reliable complete systems
