RS 50-3
Rosho Automotive Solutions
The monitor-camera system consists of a 5″ monitor LCM 503T, camera RK 1405M with 130° viewing angle and a 20m camera cable. The rugged housing is ideal for outdoor use in trucks, agar and motor vehicles.
Rosho Automotive Solutions

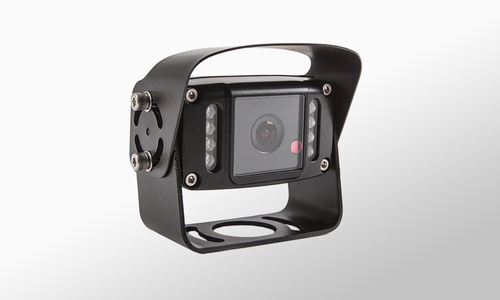

Camera RK 1405M
The RK 1405M with particularly robust IP69k housing can be connected to all vehicles with 12 V or 24 V on-board power supply. This is particularly dust, dirt, rain and frost resistant. Thanks to its robust design, the camera meets the very high IP69K protection class for water and dust tightness and can also withstand cleaning with a high-pressure cleaner. A window heater is also installed for adverse weather conditions. Operation is possible at temperatures from -30 to +70 °C.
Camera RK 1405M
Viewing angle:130° ( D )
Protection class: IP 69K
Connection cable: MiniDIN
1/3“ CCD
Video format PAL
700 TV lines
0,01 Lux (0 Lux with IR LED on)
Heating
Operating temperature range -30°C ~ 70 °C
Power supply 12/24 V
Dimensions 76mm x 64mm x 42mm (without sun visor)
Certificates
E-mark
ECE 118
ES-95400-10 (analog DIN EN ISO 9227)
IEC 60068-1:2013 / DIN EN 60068-1
VDE 0468-1:2015-09
IEC 60068-2-11:1981
DIN EN 60068-2-11:2000-02
MBN LV 124-2:2013-08
Rosho Automotive Solutions
The roots of today’s ROSHO GmbH Rose & Holiet go back to the 1970s: everything began with entertainment systems – initially not on four wheels, but for the retail and catering sectors The company entered the world of commercial vehicles in the 1980s with the development of audio-visual products for coaches, which quickly established themselves as sought-after alternatives to the market-leading products of the time. As pioneers, Rose & Holiet developed the first camera surveillance systems for vehicles.
Today, ROSHO Automotive Solutions has specialized in system solutions and products for trucks, public transport and commercial vehicles – for a good two decades as a contemporary and flexible company. We are optimally equipped for the future of mobility:
We have been using digital, networked and intelligent technologies for many years and are already working on the next step for more safety on the road – with innovative hardware and software that we refine into highly reliable complete systems
Read more: Rosho
-
-
RS 73-21
Rosho Automotive Solutions
7-inch LCM 703T LCD monitor, trailer detection box, 2 × 20-meter camera cable, ABS spiral cable set VAR II-1.5 m, 2 × RK 1100M camera and 20-meter extension cable.
-
K7000B 7" LCD color system
Ecco Safety
7" LCD color system. Kit is expand able up to 2 cameras (C2013B only).
-
RS 73-8
Rosho Automotive Solutions
The top selling camera monitor system RS 73-8 consists of a 7″ monitor LCM 703T, high resolution CCD rear view camera RKT 1003M and 20 meters of camera cable. By means of built-in LED day bright images even at night.
