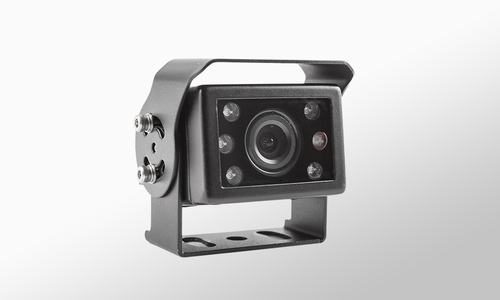

Camera RK 1306M

The RK 1306M camera with especially robust IP69k housing can be connected to all vehicles with 12 V or 24 V on-board power supply. The compact and small camera is specially designed for use in hard-to-reach areas of the vehicle for outdoor operation. At the same time, this is resistant to dust, dirt, rain and frost. Camera RK 1306M Viewpoint: 130° ( D ) Protection class: IP 69K Connection cable: MiniDIN 1/3″ CMOS Video format PAL 650 TV lines 0,01 Lux (0 Lux with IR LED on) Operating temperature range -30°C ~ 70 °C Power supply 12/24 VDC Dimensions 43mm x 46mm x 46mm Certificate E-mark ECE 118 ES-95400-10 (analog DIN EN ISO 9227) IEC 60068-1:2013 / DIN EN 60068-1 VDE 0468-1:2015-09 IEC 60068-2-11:1981 DIN EN 60068-2-11:2000-02 MBN LV 124-2:2013-08

Manufacturer

Rosho Automotive Solutions

Product sheet

ROSHO_Catalogue_Web.pdf

Temperature range

-30°C ~ 65°C

Supply voltage

12V; 24V

Rosho Automotive Solutions


The roots of today’s ROSHO GmbH Rose & Holiet go back to the 1970s: everything began with entertainment systems – initially not on four wheels, but for the retail and catering sectors The company entered the world of commercial vehicles in the 1980s with the development of audio-visual products for coaches, which quickly established themselves as sought-after alternatives to the market-leading products of the time. As pioneers, Rose & Holiet developed the first camera surveillance systems for vehicles.

Today, ROSHO Automotive Solutions has specialized in system solutions and products for trucks, public transport and commercial vehicles – for a good two decades as a contemporary and flexible company. We are optimally equipped for the future of mobility:

We have been using digital, networked and intelligent technologies for many years and are already working on the next step for more safety on the road – with innovative hardware and software that we refine into highly reliable complete systems
