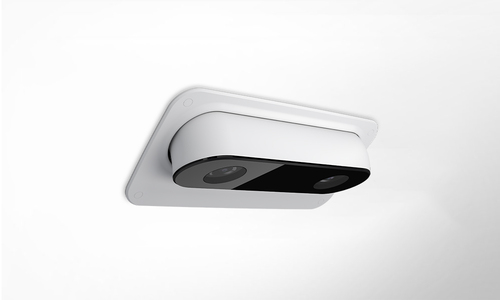

Passenger counting sensor APS-B installation variant

The APS-B sensor represents the latest generation of intelligent counting sensors. It meets the requirements of VDV 457-2 with its high-precision counting accuracy. It uses 3D image processing algorithms with highly automated and very reliable object recognition to analyze the flow of people. A counting accuracy of more than 99% is achieved. The APS-B sensor improves ease of use, maximizes options of new remote connectivity, and automates many procedures that typically require manual intervention. Its slim design makes it ideal for use in buses. As a result, labor costs for installing, commissioning and operating traditional APC units can be reduced. Additional accessories may be required. Additional component parts may be required. Image includes component parts APS-B installation sensor Application area bus Accuracy 99% Operating voltage 12 V DC – 24 V DC, (protection against short circuit and polarity reversal) Power consumption 4W Operating temperature range -15 °C to +70 °C (ISO 16750-4) Storage temperature -40 °C to +85 °C (ISO 16750-4) Protection class IP30 Shock and vibration resistance ISO 16750-3 Measuring range (ceiling height: 2.00 m – 4.00 m // door width: 1.60 m – 5.60 m) – (depending on door height) Dimensions 136 x 79 x 31 mm Weight 250g Case aluminum and stainless steel Light sensitivity 3 Lux to 300.000 Lux // High Dynamic Range (HDR) Failure rate 2000 FIT (= MTBF 500,000 hours) Approvals ECE type approval for road vehicles // CE certificate of conformity Interfaces Ethernet 10/100/1,000 Mbit/s, full duplex Communication protocols TCP, UDP, FTP, HTTP, HTTPS, SOAP, VDV-300 (IBIS), VDV-301 (IBIS-IP), ITxPT, SSH Inputs/Outputs 2 programmable digital inputs // 1 programmable digital output Setup/Service Integrated web interface
