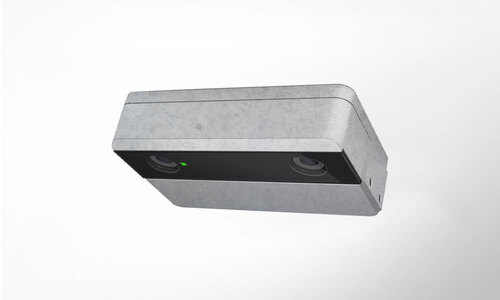

AFZ sensor APS-R-PoE

The modern sensor variant ROSHO APS-R-PoE for recording the number of boarding and alighting passengers. Ideally suited for use of passenger counting of buses, trains and other public transport. The APS-R-PoE is the modern passenger counter. It uses 3D image processing algorithms to analyze passenger flow in near real-time. It achieves counting accuracy of 98% or higher. Counts boarding and alighting passengers with the highest accuracy available on the market (99% or higher accuracy). The APS-R-PoE meets the accuracy requirements of VDV 457-2. Up to 10 individual counting lines per device are possible. They record separate values for the individual door entrances or the upper and lower decks without the need for additional devices. The APS-R-PoE improves ease of use, maximizes options of new remote connectivity and automates many procedures. The sensor can distinguish between adults and children. Furthermore, it can detect bicycles and wheelchairs. The sensor automatically determines the mounting angle, floor profile and ceiling height. Intuitive and straightforward setting of all other parameters is done via the web user interface. As a result, labor costs for installation, commissioning and operation of conventional APC units can be reduced. Additional component parts required. APS-R PoE Place of use bus, train, tramway, subway Accuracy 99% Operating voltage Power-over-Ethernet (PoE), IEEE 802.3af class 0, (protection against short circuit and reverse polarity) Power consumption 5W Operating temperature range -25 °C to +70 °C (EN 50125-1 class T3) Storage temperature -40 °C to +85 °C (EN 50125-1 class T3) Protection class IP65 Shock and vibration resistance EN 50125-1, IEC 61373 cat. 1, class B Measuring range (ceiling height: 2.00 m – 4.00 m // door width: 1.60 m – 5.60 m) – (depending on door height) Dimensions 141 x 98 x 35 mm Weight 440g Case aluminum Light sensitivity 3 Lux to 300.000 Lux // High Dynamic Range (HDR) Failure rate 2000 FIT (= MTBF 500,000 hours) Approvals ECE type approval for road vehicles // CE certificate of conformity // 50155 railroad approvals Interfaces Ethernet 10/100 Mbit/s, full duplex Communication protocols TCP, UDP, FTP, HTTP, HTTPS, SOAP, VDV-300 (IBIS), VDV-301 (IBIS-IP), ITxPT, SSH Inputs/Outputs 2 programmable digital inputs // 1 programmable digital output Setup/Service Integrated web interface Door coding 4 coding pins for selection of 16 individual door configurations
