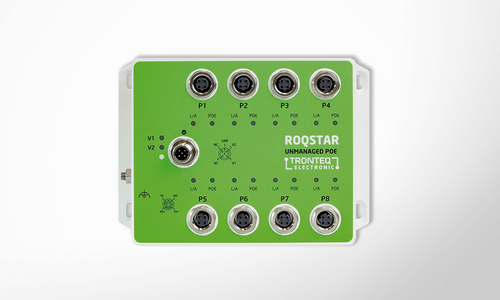

8 port unmanaged switch

The unmanaged standard switch offers 8 fast ethernet ports. With M12 connectors and an IP54 case. It is designed for use in harsh environments. The switch is a plug and play device that is easy to use. The switch is ready for operation in less than 5 seconds. It is ITxPT labeled and is the perfect entry-level device for IP networks in buses, for example, video applications, passenger counting systems and other IP devices. Additional component parts required 8 port unmanaged switch Connectors M12 d-coded socket 4-pin: 8 x 10/100Mbps M12 a-coded connector: 1 x power supply Physical Case: aluminum Protection class: IP54 Installation: wall mounting Dimensions: 175mm x 52mm x 121mm Weight: 550g Environment Operating temperature (ambient): -40°C to +70°C Storage temperature: -40°C to +85°C Relative humidity: 10% to 90%, non-condensing LED indicators Power LEDs: V1, V2 Network LEDs: L/A ; PoE Power supply Power consumption: 5.0W at 24 VDC Operating voltage: 9.6 – 60VDV Power supply input: V1, V2, dual, reverse polarity protected Certificates E-mark EMC: ECE R10 E-mark fire protection: ECE R118 Markings: ITxPT labeled, IBIS-IP compliant
