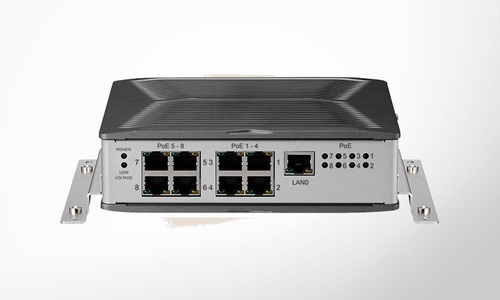

8-Port unmanaged PoE IP switch 8S

Mobile PoE switch with fanless case designed for telematics applications in harsh environments. The IP switch has 9 Gigabit Ethernet ports, including up to 8 IEEE 802.3af compliant PoE ports for smooth and fast transmission of large volumes of video streams, voice and critical data over Ethernet networks. The PoE Switch 8S provides 9 Giga-bit Fast Ethernet ports, including 8 PoE ports compliant with IEEE 802.3af, to transmit large amounts of streaming video, voice and critical data smoothly and quickly over the Ethernet network. Because a vehicle’s power source is inherently unstable, the mobile PoE switch supports a wide input voltage range of 9 VDC to 36 VDC and offers intelligent power management with low battery protection, power-on and power-off delay timers, and automatic power-on and power-off functions. These unique features ensure reliable operation and prevent premature switch failure. 8-Port unmanaged PoE IP switch 8S 1+ 8x 10/100/1000 Mbps PoE port (802.3af compliance) 15.4 W at 48 VDC for each PoE port Low battery protection Wide current input range: 9~36VDC Operating temperature: -30~70°C Dimensions: 167mm x 58.8mm x 139.6mm Weight: 1kg Ignition on/off support On/off delay setting Certificate E13 certification CE/FCC
