8-Port unmanaged PoE IP switch 4S

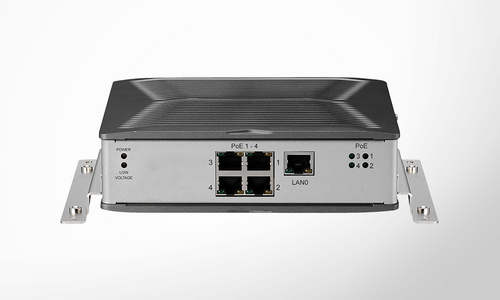

Mobile PoE switch with fanless chassis designed for smaller telematics applications in vehicles, such as public buses. The IP switch has 5 Gigabit Ethernet ports, including up to 4 IEEE 802.3af compliant PoE ports for smooth and fast transmission of large volumes of video streams, voice and critical data over Ethernet networks. The PoE Switch 4S has 5 Giga-bit Fast Ethernet ports, including 4 PoE ports compliant with IEEE 802.3af, to transmit large amounts of streaming video, voice and critical data smoothly and quickly over the Ethernet network. Since a vehicle’s power source is inherently unstable, the mobile PoE switches support a wide input voltage range of 9 VDC to 36 VDC and offer intelligent power management with low battery protection, power-on and power-off delay timers, and auto-fire on/off functions. These unique features can ensure reliable operation and prevent premature failure of both the PoE switches and the vehicle. 8-Port unmanaged PoE IP switch 8S 1+ 4x RJ45 10/100/1000 Mbps PoE port (802.3af compliant) 15.4 W at 48 VDC for each PoE port Low battery protection Wide current input range: 9~36VDC Operating temperature: -30~70°C Dimensions: 167mm x 58.8mm x 139.6mm Weight: 1kg Ignition on/off support On/off delay setting Certificate E13 certification CE/FCC
