Wenglor

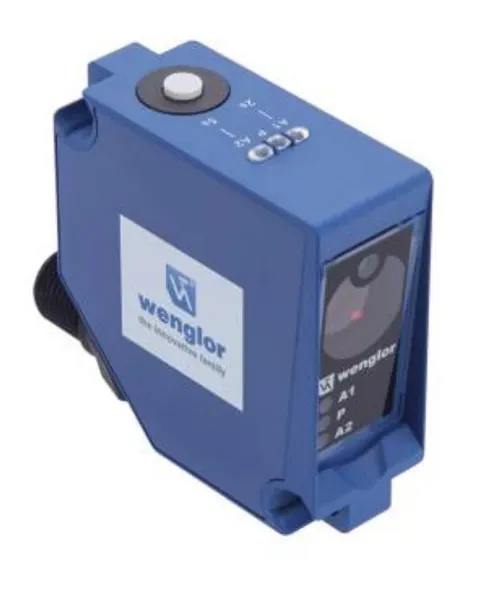

P1PY111 High performance distance sensor

The sensors function in accordance with the principle of transit time measurement with laser class 1. The wintec with Dynamic Sensitivity technology (DS) enables previously unattainable reception sensitivity even with very weak signals. As a result, the sensors have a large working range of up to 10 m and can reliably detect dark or shiny objects even at extreme angles. wintec also works very reliably in adverse ambient conditions, e.g., caused by ambient light or dirt. Extensive condition monitoring functions additionally enable predictive maintenance and trouble-free operation. 2 mutually independent switching outputs. Built-in acceleration sensor. No interactive influence. Wide working range and precise detection thanks to DS technology.

Manufacturer

Wenglor

Product sheet

P1PY111.pdf

IP classification

IP67; IP68

Housing

Cuboid compact

Housing material

Plastic

Measuring range

0-10000mm

Communication Interface

IO-Link; NC; NO; NPN; PNP

Electrical connection

M12 connector

Supply voltage

18-30VDC

Photocell type

High performance distance sensor

Wenglor


Wenglor develops intelligent sensor technologies as well as safety and image processing systems with state-of-the-art communication standards for industry around the world. Thanks to innovative, world-class products, we fulfill both extraordinary and standard requirements. For more than 30 years, we’ve been offering the right products for small and mid-sized companies, as well as for international industrial conglomerates. In addition to Photoelectronic and Inductive Sensors, our core areas of expertise also include Ultrasonic Sensors, Fluid Sensors, 2D/3D Sensors, Vision Systems, Barcode Scanners as well as Safety Technology. Our goal is to supply customers with innovative, high quality solutions – every day and everywhere around the globe.
